Graph view

Tap to show the graph.

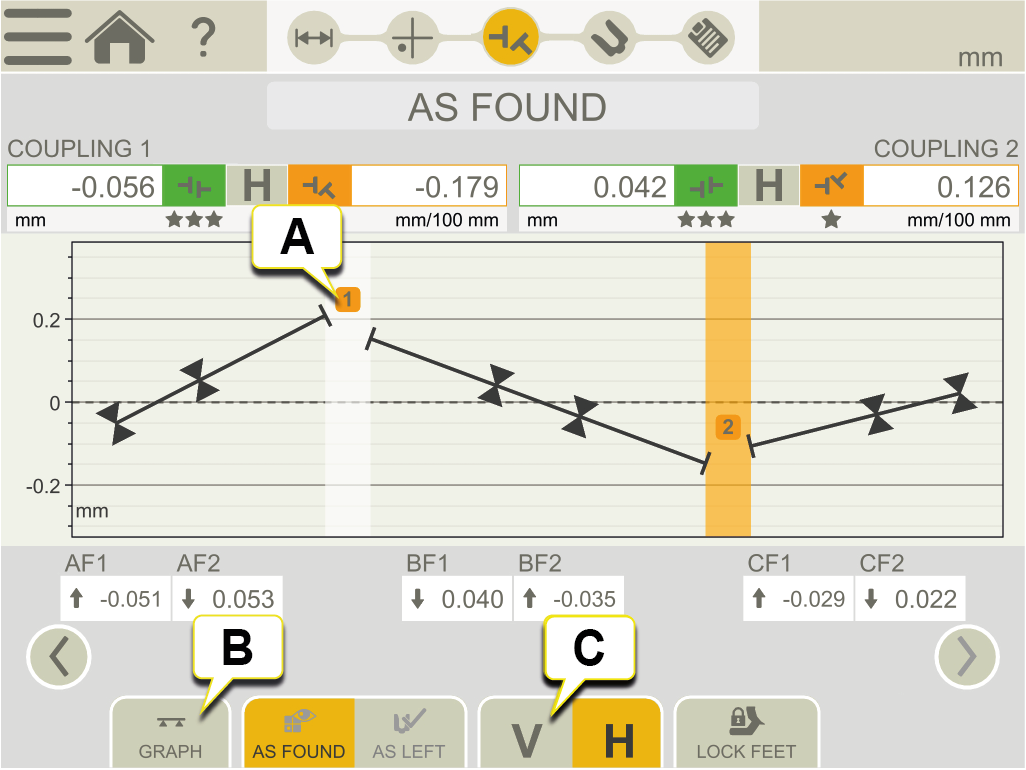

1. Coupling number. color indicates tolerance. Go to Tolerance
2. Tap to change result view.
3. Tap to show vertical or horizontal.

	Coupling number.
	This coupling has been adjusted.
	Uncertain coupling. When you adjust one coupling, it might affect the next coupling in the machine train. This coupling needs to be remeasured.
	Thermal compensation.
	Indicates not within tolerance.
	Within tolerance. 1-3 stars depending on which tolerance is used.
	Check that all couplings are measured and that all distances are entered.
